Straight Knurling Power Feed Cable Gripper 8*40mm Connection For Lights Hanging System F3-324-S

Large Image : Straight Knurling Power Feed Cable Gripper 8*40mm Connection For Lights Hanging System F3-324-S

Product Details:

Place of Origin:	Dongguan,China
Brand Name:	Yuyang
Certification:	SGS, CE, ROHS, ISO9001
Model Number:	F3-324-S

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.59-$0.66
Packaging Details:	Carton, 402720cm, 402711cm, 28259cm
Delivery Time:	7-15 days
Payment Terms:	D/A,T/T,Western Union

Contact Now Chat Now

Straight Knurling Power Feed Cable Gripper 8*40mm Connection For Lights Hanging System F3-324-S

Description

Material:	Brass	Color:	Nickel
Design:	Straight Knurling	Coupling Thread:	M7×1.0
Thread Length:	8mm	Height:	40 Mm
Applicable Cable:	1.2mm-2mm	Delivery:	7-18 Days
Sample:	Freely Supplied	Function:	Lighting Connection
Highlight:	Straight knurling Power Feed Cable Gripper , 8*40mm Power Feed Cable Gripper , Connection Lighting Cable Gripper

Details photo

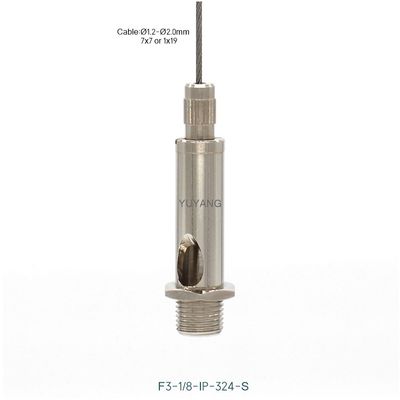

Straight Knurling Power Feed Cable Gripper 8*40mm Connection For Lights Hanging System F3-324-S 0

This cable gripper, crafted from high-quality brass, is a versatile solution for your lighting installation needs. It can firmly secure both suspension wires and lamp wires simultaneously. The clamp is compatible with cables ranging from Ø1.2 to Ø2mm, Installation with M7 thread sprovided at the bottom.Different sizes available, suitable for different light types hanging.

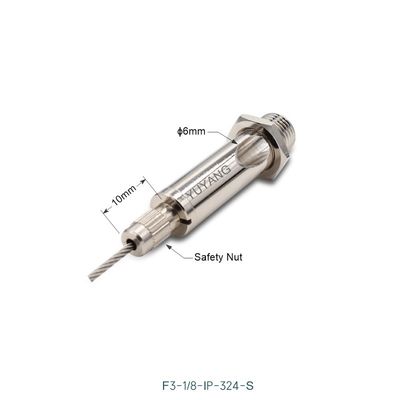

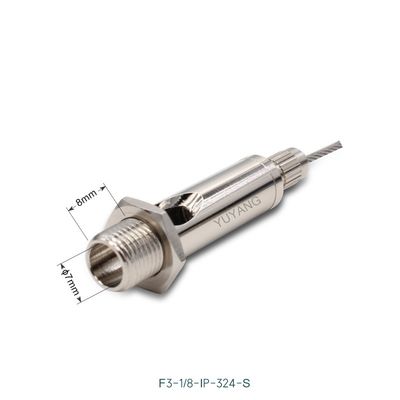

Straight Knurling Power Feed Cable Gripper 8*40mm Connection For Lights Hanging System F3-324-S 1

Whether for residential, commercial, or industrial lighting projects, this gripper offers reliable performance, ensuring the safety and stability of your lighting system.

Product parameters

Material Optional	Brass
Surface Treatment	Nickel or chrome plating or as customized design.
Applicable Cable	Ф1.2mm,Ф1.5mm,Ф2mm or other.
Breaking Load	22-36 kg depends on cable specification.
Certifications	SGS, CE, ROHS,ISO9001
MOQ	100pcs.
Application	Pendant lights, panel lights, advertising light boxes, etc.

About us

Straight Knurling Power Feed Cable Gripper 8*40mm Connection For Lights Hanging System F3-324-S 4

Straight Knurling Power Feed Cable Gripper 8*40mm Connection For Lights Hanging System F3-324-S 5
