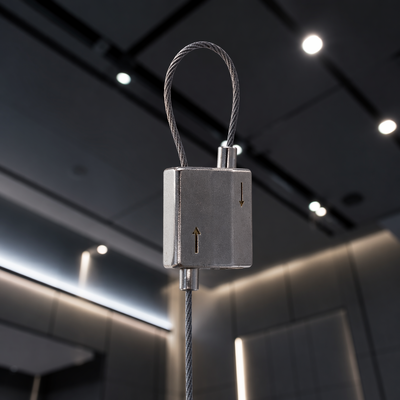

Custom Length Looping Gripper Systems Precision CNC Hardware Self-Locking Cable Looping Gripper 3.5-5.0mm 200kg / 440lbs Polished Nickel High Security Wire Rope Clamp

The gripper employs a precision ball-bearing and wedge geometry that converts suspended load into locking force. As the hanging weight increases, internal wedge elements are driven deeper into the cable contact interface, generating proportionally higher clamping force. This physics-based self-energizing lock eliminates the single point of failure found in spring-loaded or friction-pad grippers — there is no spring to fatigue, no adjustment screw to vibrate loose, and no clamping pad to wear thin over time.

• Load-proportional locking: no external energy or tensioning required
• Precision ball-bearing wedge assembly with surface-hardened contact faces
• Zero spring fatigue — indefinite service life under rated load
• Vibration-proof: wedge maintains grip even under mechanical oscillation

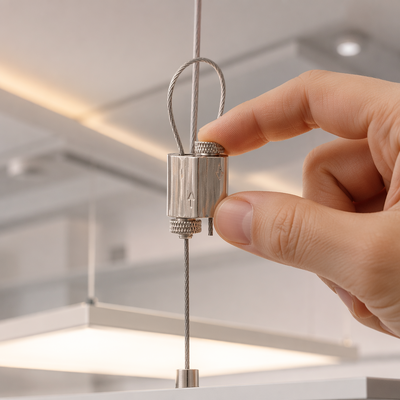

Despite its heavy-duty safety rating, the gripper remains effortless to operate. Press the ergonomic release button with one finger, glide the cable to your target position, and release — the wedge re-engages instantly. This tool-free design eliminates the need for Allen keys, screwdrivers, or crimping tools at height, significantly reducing installer fatigue and on-site labor hours on large commercial projects.

• One-finger release — fast position adjustment at height
• No set screws to strip or lose during installation
• Compatible with standard 7*7 and 7*19 stainless steel wire rope
• Ergonomic button design for gloved-hand operation

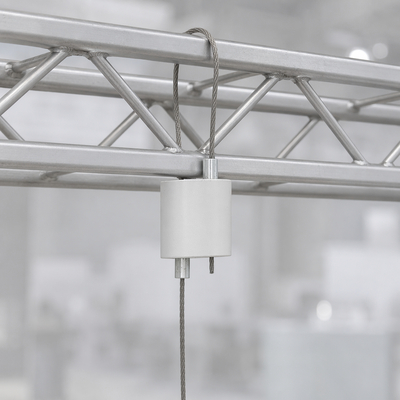

Dual cable channels allow wire rope to enter from either side, enabling loop formation around beams, trusses, and ceiling grids of any diameter. The gripper is purpose-built for suspension systems where safety redundancy is critical — each gripper forms an independent, self-reinforcing loop that cannot loosen under load, providing peace of mind in public-access areas like retail atriums, theater lighting grids, and museum exhibition halls.

• Bi-directional entry for closed-loop rigging configurations
• Each loop is independently self-locking for safety redundancy
• Ideal for public-access overhead installations
• Pairs with Ø1.0mm-5.0mm 7*7 or 7*19 stainless steel cable

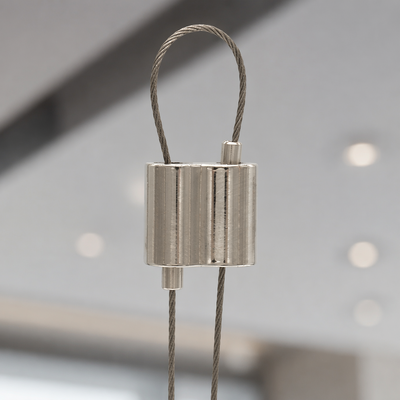

The polished nickel surface undergoes multi-stage passivation treatment, whether installed in coastal resort lobbies with high salinity air, humid indoor swimming pool areas, or climate-controlled museum galleries, the gripper maintains both its mechanical integrity and visual appeal throughout decades of service.

• UV-stable finish — no discoloration under exhibition lighting
• Withstands -20°C to +80°C operating temperature range
• Compact 40*26*18mm body blends discreetly into ceiling architecture
