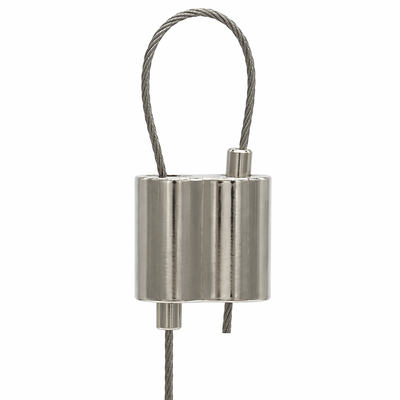

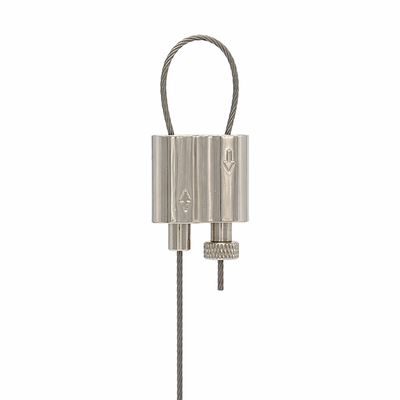

Industrial Looping Grippers for Acoustic Panels & HVAC Hanging Cable Looping Gripper 2.5-3.5mm 100kg / 220lbs Brushed Brass Closed Loop Wire Rope Clamp

Unlike conventional single-direction grippers, the gripper accepts wire rope from either end of its dual-channel body. This bi-directional design eliminates the need to pre-plan cable routing orientation — simply wrap the cable around any beam, pipe, column, or truss member, feed both ends into the gripper from whichever direction is most convenient, and secure the loop. Ideal for irregular architectural features, retrofits into existing ceiling grids, and temporary exhibition rigging where flexibility is paramount.

• Dual cable channels accept wire rope from left or right side
• Forms closed loops around beams of any diameter
• No pre-cut cable lengths — cut on-site for perfect fit
• Eliminates swaged end fittings, ferrules, and crimping tools

Each gripper features an intuitive push-button release mechanism. Press the button with a fingertip, slide the cable to the exact length needed, and release to lock. This tool-free operation is particularly valuable in overhead installation scenarios — contractors can adjust positioning while holding the fixture with one hand and operating the gripper with the other, drastically reducing labor time on job sites with dozens or hundreds of suspension points.

• One-hand operation — hold fixture, adjust cable simultaneously
• No Allen keys, screwdrivers, or specialized tools required
• Infinite stepless adjustment along full cable length
• 70% faster installation versus traditional set-screw grippers

The internal precision wedge mechanism of the gripper delivers proportional locking force — as the suspended weight increases, clamping pressure on the cable intensifies. This eliminates the risk of slippage that plagues spring-loaded designs. Even under vibration from nearby HVAC equipment, foot traffic in multi-story buildings, or seismic events, the wedge maintains a death grip on the wire rope.

• Proportional locking: heavier load → stronger grip
• Vibration-resistant for active building environments
• No spring fatigue or periodic re-tensioning required
• Compatible with 7*7 and 7*19 stainless steel wire rope

With its brushed brass surface and 32*20*14mm footprint, the gripper is compact enough to disappear into ceiling lines yet refined enough to remain visible in open-ceiling architectural designs. The multi-stage surface treatment provides 500+ hour salt spray protection while delivering a consistent, glare-free texture that complements modern pendant lighting, signage systems, and acoustic installations.

• Brushed Brass — coordinates with standard architectural hardware
• Compact 32*20*14mm profile for discreet integration
• 500h salt spray tested (ASTM B117) for long-term durability
• Resistant to UV, humidity, and temperature cycling
