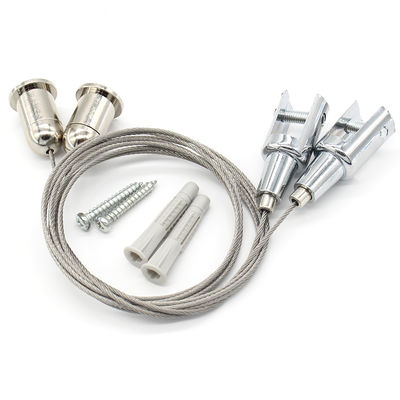

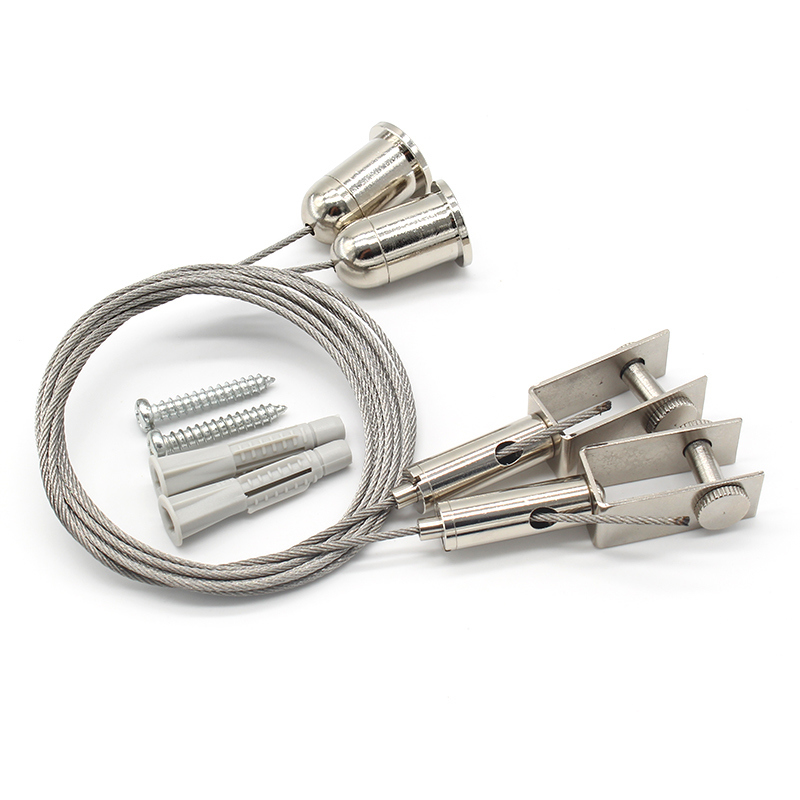

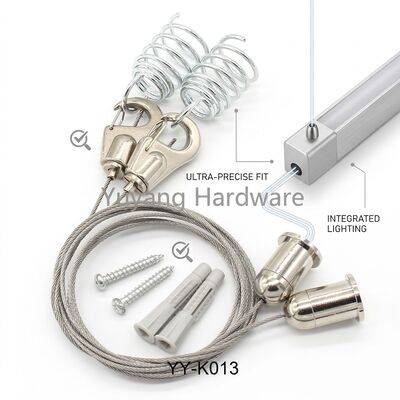

Adjustable Acoustic Panel Hanging System With Cable Grippers 1.5mm Wire Rope
This adjustable acoustic panel hanging kit engineered for 1.5mm wire rope ceiling suspension. Each kit pairs precision brass or zinc alloy cable grippers with 1.5mm rope, delivering tool-free height adjustment, firm locking and fast installation for acoustic panels in offices, studios, gyms and commercial interiors.
Key Features
- Tool-free stepless height adjustment - position acoustic panels precisely in seconds

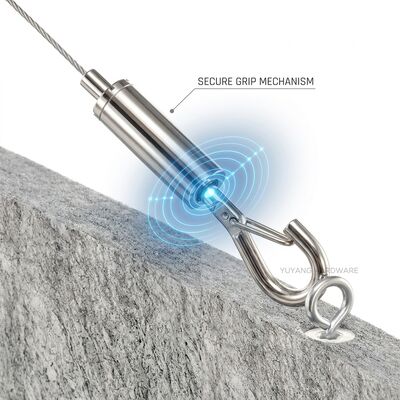

- Adjustable cable grippers lock firmly onto 1.5mm wire rope without crimping tools
- Quick ceiling mounting with pre-assembled components for fast installation
- Customizable cable length from 0.5m to 5m for any ceiling height
- Rust-resistant finish options: nickel, chrome, black or white plating
Specifications
| Model Number | YY-AP15 |
| Gripper Material | Brass / Zinc Alloy / Stainless Steel 304 |
| Applicable Cable | 1.5mm wire rope (7x7 or 7x19 construction) |
| Cable Material | 304 Stainless Steel or Galvanized Steel |
| Cable Length | Customized 0.5m - 5m |
| Surface Treatment | Nickel / Chrome / Black / White |
| Breaking Load | 15-88 kg (depends on cable specification) |
| Certification | SGS, CE, ROHS, ISO9001 |
Application Guide

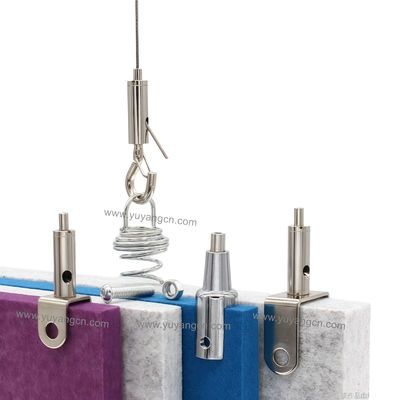

Ideal for suspending acoustic panels, ceiling clouds, baffles, signage and lighting fixtures in offices, meeting rooms, recording studios, restaurants, gyms and retail spaces. The 1.5mm wire rope system supports a 15-88 kg load range, and cable length and gripper finish are fully customizable to match your project.
Typical installation steps:
- Fix the ceiling anchor or gripper at the marked position on the ceiling or T-bar grid.
- Cut the 1.5mm wire rope to the required drop length.
- Pass the wire rope through the acoustic panel mounting hole and into the cable gripper.
- Slide the gripper to adjust the panel height and level the panel - no tools needed.
- Lock the gripper firmly and trim any excess rope.
Customization & OEM Service
Cable length, material (304 stainless steel / galvanized steel), gripper color and surface finish can all be customized. We produce according to customer specifications - material, diameter, construction, coating, length, packing and quality.
FAQ
Q: When can I get the price?
A: We usually make a quotation within 24 hours of receiving your inquiry. For urgent pricing, please call us or note it in your email so we can prioritize.
Q: How long can I expect to get the sample?
A: Samples are ready in 3-7 days and delivered within 3-5 working days. You may use your own courier account or pay us in advance.
Q: How do you design a cable hanging system?
A: We first confirm the application, then consider workload, safety, abrasion, environment, cycle life, flexibility and cost before designing the kit.
Q: How do I place an order?
A: Provide complete information including material, diameter, construction, coating, length, packing, quality and any remarks. Model YY-AP15 is our standard reference; custom specs are welcome.
