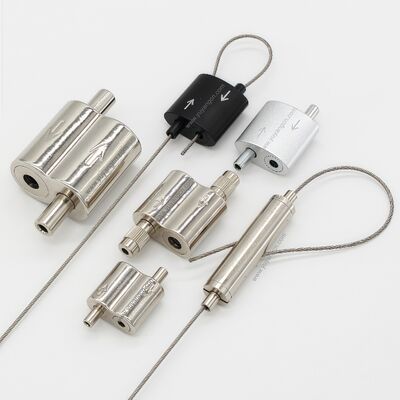

Bidirectional Self-Locking HVAC Gripper Kit 1.5mm with Arrow Height Indicator

Bidirectional Self-Locking HVAC Gripper Kit 1.5mm with Arrow Height Indicator
Bidirectional Self-Locking HVAC Gripper Kit 1.5mm with Arrow Height Indicator Bidirectional Self-Locking HVAC Gripper Kit 1.5mm with Arrow Height Indicator Bidirectional Self-Locking HVAC Gripper Kit 1.5mm with Arrow Height Indicator Bidirectional Self-Locking HVAC Gripper Kit 1.5mm with Arrow Height Indicator

Large Image :  Bidirectional Self-Locking HVAC Gripper Kit 1.5mm with Arrow Height Indicator

Product Details:
Place of Origin: Guangdong, China
Brand Name: YUYANG
Certification: ISO 9001:2015, RoHS, REACH，CE
Model Number: H9-908
Payment & Shipping Terms:
Minimum Order Quantity: 500 Pieces
Price: USD 0.90-2.60 / Piece
Packaging Details: Export-grade corrugated carton with anti-scratch PE bag, OEM logo available
Delivery Time: 3 working days for stock, 15-25 days for production
Payment Terms: T/T,L/C,PayPal,Western Union
Supply Ability: 50000 Pieces per Month
Contact Now Chat Now

Bidirectional Self-Locking HVAC Gripper Kit 1.5mm with Arrow Height Indicator

Description
Material: Zinc Alloy Cable Diameter: 1.5mm
Direction Indicator: Arrow Mark For Fast Threading Locking Type: Bidirectional Self-locking
Load Capacity: Up To 30kg Per Point Height Adjustment: Infinite Micro Adjustment
Application: Lighting And Signage Roofs
Highlight:

Bidirectional Self-Locking Gripper

,

Arrow Direction Indicator

,

Infinite Height Micro Adjustment

Bidirectional Self-Locking HVAC Gripper Kit 1.5mm with Arrow Indicator

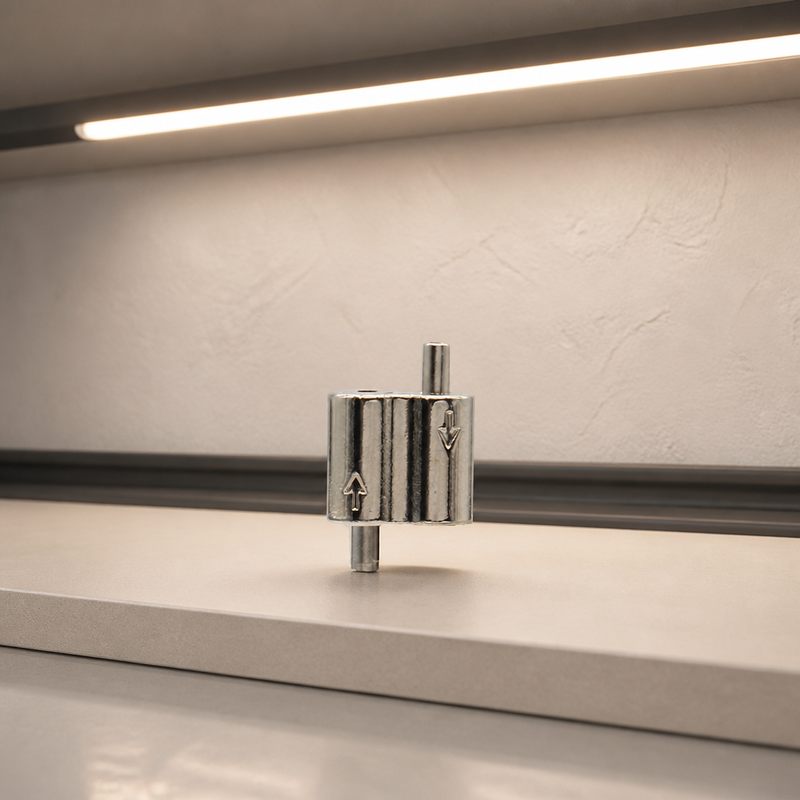

This bidirectional self-locking HVAC gripper kit adds a clear arrow mark so installers can find the correct threading direction at a glance, cutting on-site errors. The self-locking design supports infinite micro adjustment, ideal for jobs that need precise suspension height.

Key Features

  • Bidirectional Self-locking Mechanism: the steel cable can be threaded from both directions and locks automatically under load; an arrow mark helps installers find the correct threading direction quickly, reducing on-site errors, with infinite micro adjustment of the hanging height.
  • Reusable Height Adjustment Without Cutting Cable: no need to cut the wire rope, loosen and reposition the hanging point repeatedly, convenient for commissioning and later retrofit.

Specifications

Material Zinc alloy
Cable Diameter 1.5mm
Direction Indicator Arrow mark
Load Capacity Up to 30kg per point
Height Adjustment Infinite micro adjustment
Finish Nickel

Applications

Suited to precise lighting and signage suspension where the height must be fine-tuned.

Contact us for bulk pricing and OEM service.
