1.2mm Stainless Steel Wire Rope Acoustic Panel Suspension Kit 1 Meter Adjustable Brass Gripper Hook Set

1.2mm Stainless Steel Wire Rope Acoustic Panel Suspension Kit 1 Meter Adjustable Brass Gripper Hook Set
1.2mm Stainless Steel Wire Rope Acoustic Panel Suspension Kit 1 Meter Adjustable Brass Gripper Hook Set 1.2mm Stainless Steel Wire Rope Acoustic Panel Suspension Kit 1 Meter Adjustable Brass Gripper Hook Set 1.2mm Stainless Steel Wire Rope Acoustic Panel Suspension Kit 1 Meter Adjustable Brass Gripper Hook Set 1.2mm Stainless Steel Wire Rope Acoustic Panel Suspension Kit 1 Meter Adjustable Brass Gripper Hook Set

Large Image :  1.2mm Stainless Steel Wire Rope Acoustic Panel Suspension Kit 1 Meter Adjustable Brass Gripper Hook Set

Product Details:
Place of Origin: Guangdong, China
Brand Name: YUYANG
Certification: ISO 9001, CE, RoHS, REACH
Model Number: YY-APK12-100
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Price: USD 0.85-1.60 / Set
Packaging Details: PE bag per set, 100 sets per export carton 40x27x20cm
Delivery Time: 3-7 days for stock, 15-20 days for production
Payment Terms: T/T, L/C, Western Union, PayPal
Supply Ability: 20000 Sets per Month
Contact Now Chat Now

1.2mm Stainless Steel Wire Rope Acoustic Panel Suspension Kit 1 Meter Adjustable Brass Gripper Hook Set

Description
Wire Rope Diameter: 1.2mm Cable Construction: 7x7 AISI 304 Stainless
Cable Length: 1m Standard, 0.5-5m To Order Breaking Load: 25 Kg
Gripper Body Material: Brass, Nickel Plated Ceiling Anchor: M6 Snap Hook, Zinc Plated
Panel Hook: Bayonet Hook For 3-8mm Panel Application: Office Acoustic Ceiling Baffles
Custom Length: Available At No Extra Tooling Cost
Highlight:

1.2mm wire rope suspension kit

,

acoustic ceiling baffle hanging kit

,

adjustable brass cable gripper

Acoustic Panel Suspension Kit — 1.2mm Wire Rope, 1 Metre Drop

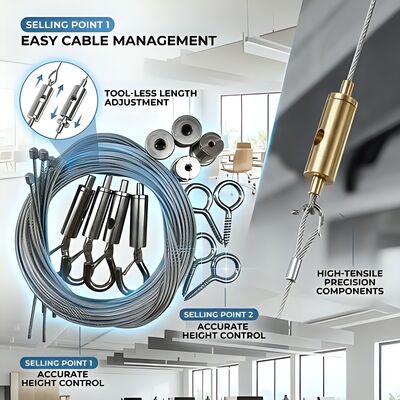

A ready-to-install hanging set for office acoustic ceiling baffles: 1.2mm stainless steel wire rope, nickel-plated brass side-exit gripper, M6 ceiling snap hook and panel bayonet hook. The drop height is set on site by sliding the cable through the gripper, so one kit covers uneven slab levels.
Stainless wire rope acoustic panel suspension kit with brass gripper and snap hookAcoustic ceiling baffles suspended by 1.2mm wire rope kits in an open plan office

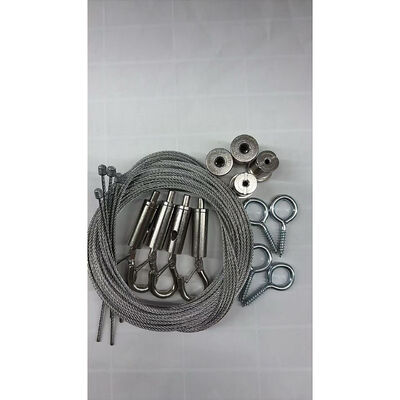

What Ships In One Set
ComponentSpecificationQty
Stainless wire rope1.2mm, 7x7 construction, AISI 304, clear PVC jacket optional1 x 1m
Side-exit cable gripperBrass body, nickel plated, spring loaded locking ball1 pc
Ceiling snap hookM6 thread, zinc plated steel, for concrete plug or steel purlin1 pc
Panel bayonet hookFor 3-8mm panel insert or T-bar clip1 pc

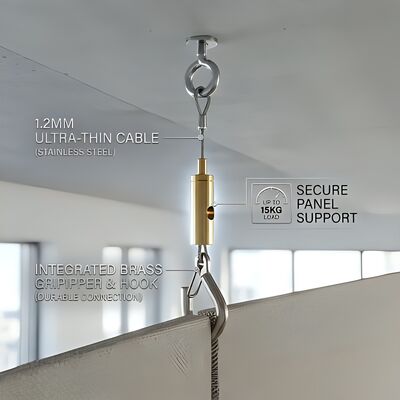

Close up of nickel plated brass gripper and 1.2mm wire rope holding an acoustic baffle
Why 1.2mm Suits Office Ceilings
  • Breaking load of the 7x7 1.2mm rope stays above 25 kg, roughly four times the weight of a standard 2.4 x 0.6 m mineral wool baffle.
  • The slim 1.2mm profile reads as a fine line against white ceilings, so the suspension almost disappears in photos and renderings.
  • Gripper releases with a push of the release collar, which makes later baffle repositioning or cleaning straightforward.
  • No tools required for length setting; slack is stored inside the gripper body rather than coiled on the ceiling.
Installation Sequence
  1. Fix the snap hook into a drilled plug or direct to steel purlin, keeping a 1.2 m to 1.5 m spacing grid.
  2. Thread the rope through the gripper, push it up to the ceiling hook and set the rough length.
  3. Attach the panel bayonet hook, then fine tune the four corners of each baffle until the ceiling line is level.

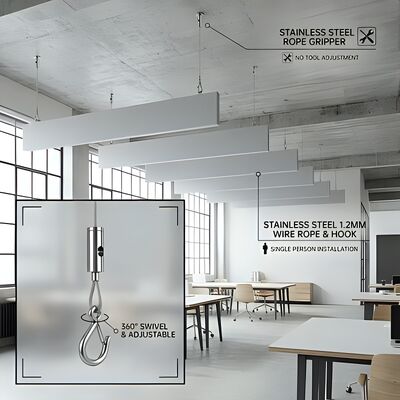

Installed acoustic ceiling baffles levelled with adjustable wire rope grippers
Ordering Notes
Cable length is cut to order at no extra cost for 0.5 m to 5 m. Choose 1.2mm, 1.5mm or 2.0mm rope, black or mill finish gripper, and single or double ended sets. Send your ceiling drawing and we will return a take-off list within 24 hours.
