2.0mm Stainless Steel Cable Suspension Kit 2 Meter Leveling Gripper for Airport Terminal Ceiling Cloud

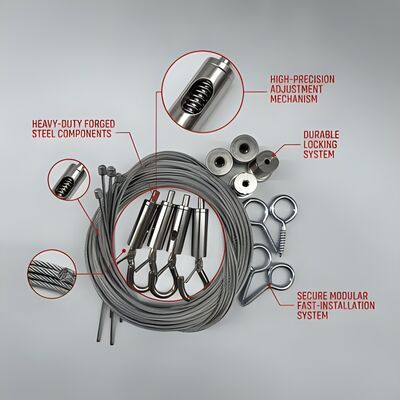

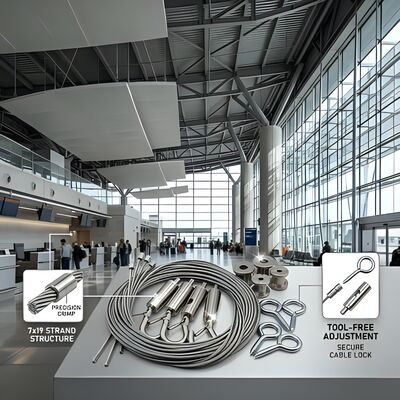

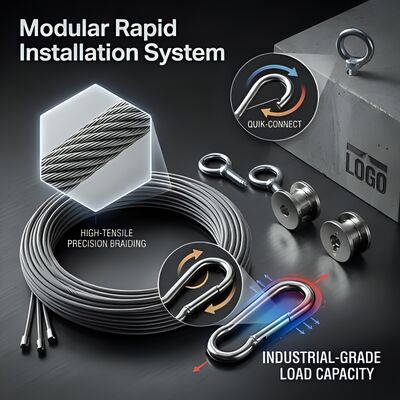

For terminals, exhibition halls and industrial halls, acoustic ceiling clouds span metres between fixing points and are exposed to air movement from doors and HVAC. This 2.0mm AISI 304 kit uses a leveling gripper with a fine thread adjustment collar, so a cloud can be brought to line after the rope has taken its load — the part of the job that usually causes callbacks.

Engineering Data

Movement, Vibration And Height

Where a cloud hangs in a draught path, specify a bottom restraint or a pair of diagonal cables; a single vertical pair will swing. For very tall voids, rope is supplied pre-cut and swaged at one end so fitters do not work at height with loose coils. Grippers are positioned at the low end of the drop so nobody needs a platform to level the panel.

• Rope lengths pre-cut per bay and labelled against your drawing.
• Cartons sequenced to installation zones to cut site sorting time.
• Spare grippers at 3 percent of quantity supplied with each shipment.
• OEM marking and private label bags available from 1000 sets.

Specifier Questions

Is AISI 316 available? Yes, for coastal or chlorine atmospheres.
Can you match a structural engineer's load case? Send the load per point and we will confirm rope size and anchorage.
Do you support phased delivery? Yes, call off against a single order with scheduled releases.
