Adjustable Bottom Exit Cable Gripper for Signage and Display Hanging

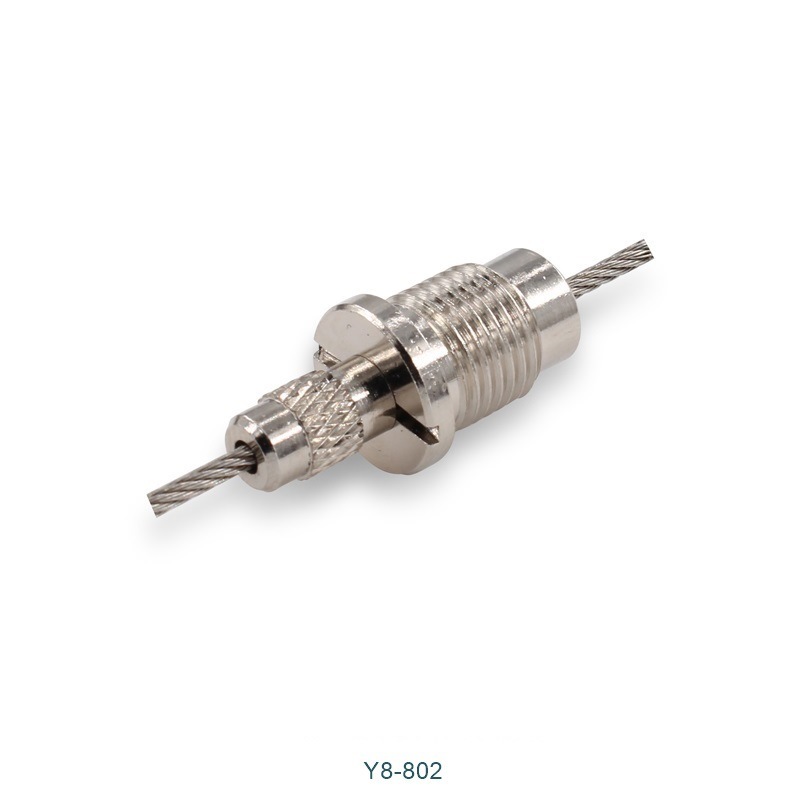

This adjustable bottom exit cable gripper is a self-locking brass fitting for hanging signage, banners, retail displays and pictures on 1.0-2.0mm steel wire rope. The wire passes straight through the gripper, making it easy to build clean, adjustable vertical suspension systems for shops, exhibitions and galleries.

Key Features

• Adjustable height: push-button release lets you fine tune the hanging height of every sign or panel without tools.
• Bottom exit design: the cable runs straight down through the fitting, giving a neat vertical line for signage and display systems.
• Brass body with satin nickel finish: durable and corrosion resistant, suited to interior commercial display use.
• Secure locking: the self-locking jaws grip the wire firmly under load to keep displays safely in place.

Specifications

• Material: Brass, satin nickel plated
• Cable diameter: 1.0-2.0mm
• Exit direction: Bottom exit
• Locking type: Adjustable self locking
• Load capacity: 20kg per gripper
• Thread: M6, M8 and M10 available

Applications

Signage and banner hanging, retail and exhibition display systems, gallery and picture hanging, and general wire rope display suspension.

Custom finishes, threads and packaging are available on request. Send us your cable diameter and display weight for a fast quotation.

Application Scenarios

The images above show this suspension cable gripper in real application scenes, helping you match the correct model to your project.
