Matte Black Suspension Cable Gripper Wire Rope Clamp Ceiling Clip for Signage Display Hanging System

Matte Black Suspension Cable Gripper Wire Rope Clamp Ceiling Clip for Signage Display Hanging System
Matte Black Suspension Cable Gripper Wire Rope Clamp Ceiling Clip for Signage Display Hanging System Matte Black Suspension Cable Gripper Wire Rope Clamp Ceiling Clip for Signage Display Hanging System Matte Black Suspension Cable Gripper Wire Rope Clamp Ceiling Clip for Signage Display Hanging System Matte Black Suspension Cable Gripper Wire Rope Clamp Ceiling Clip for Signage Display Hanging System

Large Image :  Matte Black Suspension Cable Gripper Wire Rope Clamp Ceiling Clip for Signage Display Hanging System

Product Details:
Place of Origin: Guangdong, China
Brand Name: Yuyang
Certification: ROHS, ISO 9001:2015
Model Number: SEG-BK-M10-15
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: USD 0.60-2.60 / Piece
Packaging Details: Polybag inner packing with label, export-grade corrugated carton outer packing
Delivery Time: 3-7 working days for stock, 15-25 days for production
Payment Terms: T/T
Supply Ability: 50000 Pieces per Month
Contact Now Chat Now

Matte Black Suspension Cable Gripper Wire Rope Clamp Ceiling Clip for Signage Display Hanging System

Description
Material: Brass With Matte Black Coating Gripper Type: Side Exit
Thread Type: M10 Male Thread Cable Diameter: 1.0-1.5mm
Wire Rope Construction: 7x7 / 7x19 Surface Finish: Matte Black
Safe Working Load: 15kg Breaking Load: 900N
Installation: Ceiling Clip / Mounting Attachment Application: Signage Display, Retail Hanging, Light Suspension
Highlight:

Matte Black Cable Gripper

,

Wire Rope Clamp Lock

,

Signage Display Hanging System

Matte Black Suspension Cable Gripper Wire Rope Clamp

A discreet matte black suspension cable gripper engineered for signage, retail displays and light suspension. The non-reflective finish keeps the hardware visually quiet, while the self-locking wire rope clamp and ceiling clip deliver clean, stable and adjustable hanging for 1.0-1.5mm wire rope.

Application Scenarios

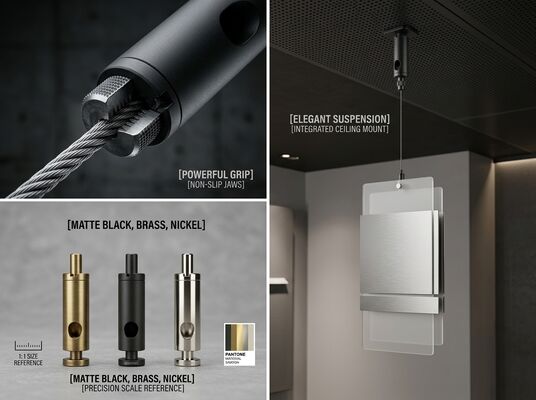

Macro close-up of the matte black cable gripper clamping a wire rope.
Scenario 1: Macro close-up of the matte black cable gripper clamping a wire rope.
The gripper installed with a ceiling clip, hanging a retail signage display in a showroom.
Scenario 2: The gripper installed with a ceiling clip, hanging a retail signage display in a showroom.

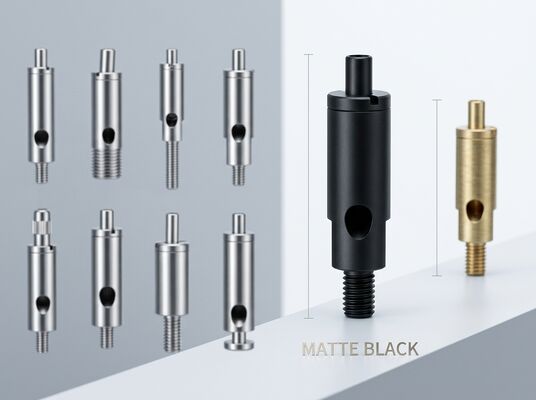

Matte black finish next to brass and nickel plated color variants with a size reference.
Scenario 3: Matte black finish next to brass and nickel plated color variants with a size reference.

Key Features

  • Discreet Matte Black Finish: Non-reflective coating minimises visual distraction in retail and exhibition spaces.
  • Self-Locking Wire Rope Clamp: Secure grip that holds position without slipping, for 1.0-1.5mm wire rope.
  • Ceiling Clip Mounting: Quick ceiling clip installation for fast signage and display deployment.
  • Adjustable Hanging: Tool-free height adjustment keeps panels and signs perfectly level.
  • Consistent Load Rating: 15kg safe working load with 900N breaking load.
  • Color Consistency: Uniform matte black finish across batches for multi-unit projects.

Technical Specifications

MaterialBrass with Matte Black Coating
Gripper TypeSide Exit
Thread TypeM10 Male Thread
Cable Diameter1.0-1.5mm
Wire Rope Construction7x7 / 7x19
Surface FinishMatte Black
Safe Working Load15kg
Breaking Load900N
Plunger Diameter2.0mm

Applications

Ideal for retail signage, exhibition displays, banner and panel hanging, showroom systems and decorative light suspension where discreet, color-matched hardware is required.

OEM & Customization

Yuyang supports OEM and ODM orders. Custom colors, finishes, thread sizes and logo packaging are available on request. Contact us for a project-specific quotation.

Packaging & Delivery

Standard packaging: polybag inner packing with product label and export-grade corrugated carton. Custom branded packaging available for bulk orders. Delivery: 3-7 working days for stock, 15-25 days for production orders.

Available Finish: Matte Black / Natural Brass / Nickel Plated / Custom RAL Colors
Need a custom finish, thread size or private-label packaging? Send us your specification and our engineering team will respond within 24 hours.
