SS-013-1200 Flat Body Double Chamber Cable Security Seal

The SS-013-1200 is a heavy duty variant with a flat rectangular body that carries two independent locking chambers. The wire rope is passed through the primary chamber and the free end is locked again into the secondary chamber, so the loop cannot be opened even if one chamber is forced. The 1200 mm rope and 1.8 mm diameter make this seal suitable for rail tank car hatches, tanker manholes and bulk silo doors.

Security features

• Double locking chambers: two independent one-way locks on the same rope
• Flat body sits flush against hatch fittings and cannot be rotated free
• 1.8 mm galvanised rope with 320 kgf breaking strength for tank and silo duty

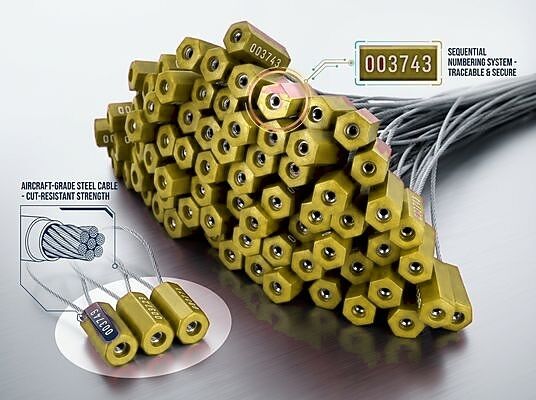

• Serial number laser marked on the flat face for fast inspection reading
• Optional tamper indicating label that changes colour once the rope is cut

Specifications

Typical application

Rail tank car manhole covers, road tanker hatches, bulk powder silo doors, chemical drum lids and heavy equipment enclosures. Terminals that must satisfy customer security audits use the double chamber version where a single chamber is not considered sufficient evidence of integrity.

Customisation service

Body length, chamber layout and rope length are produced to your specification. Number ranges can be reserved monthly so that inspectors can match seal numbers against the shipping document without duplication. Strength testing reports are issued on request for each production batch.

Packaging and delivery

50 pieces per inner box, 500 pieces per export carton. Carton size 44 x 32 x 30 cm, gross weight about 20 kg. Production lead time 12 to 20 working days.
